TYPICAL SIZE F12 F14 grit silicon carbide for sandblasting abrasion test in Europe market

September 28 , 2022

TYPICAL SIZE F12 F14 grit silicon carbide for sandblasting abrasion test in Europe market

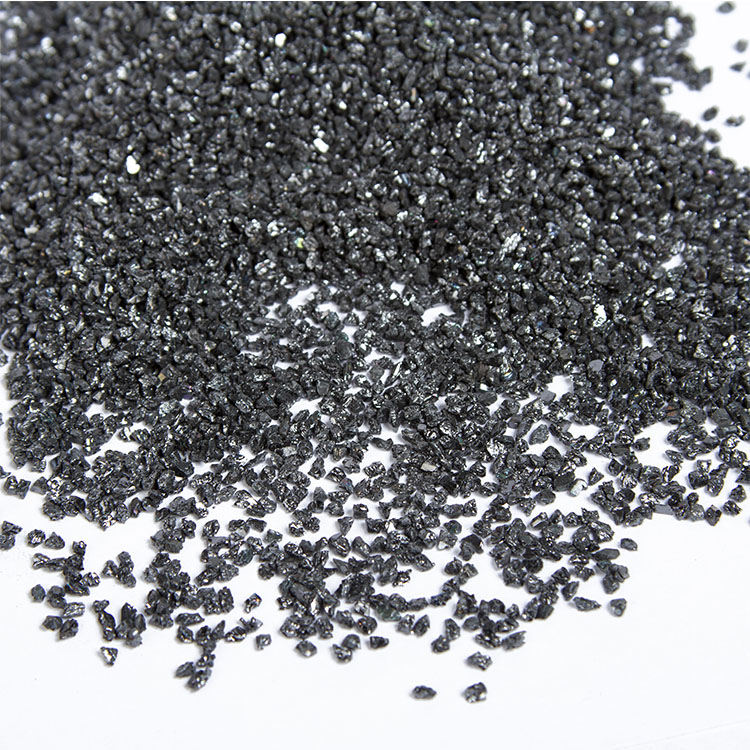

Brief introduction of black silicon carbide



Black Silicon Carbide is produced in a high temperature electric resistance-type furnace from a mixture of quartz sand and petroleum coke.

The hardness of black silicon carbide is greater than fused alumina but less than synthetic diamond.

Black silicon carbide’s mechancial intensity is greater than fused alumina, but brittle and sharp.

Black silicon carbide has some electrical and heat conductivity.



Applications



Bonded abrasive tool

Coated abrasive tool

Reusable abrasive

Grinding,lapping & polishing medium

Resin/Ceramic grinding wheels & grinding media



Typical Physical Properties

Color

black

Hardness

9.2 mohs

Grain shape

Angular

Melting Point

2100 C min

True density

3.20-3.25g/cm3

Bulk density

1.2-1.6g/cm3(depends on the size)



Typical Chemical Analysis

SIC

98.50%

Fe

0.08%

Fe2O3

0.13%

 Typical Size

F-macrogrits sizes bonded

Grit designation

Mean diameter in um

F4

4890

F5

4125

F6

3460

F7

2900

F8

2460

F10

2085

F12

1765

F14

1470

F16

1230

F20

1040

F22

885

F24

745

F30

625

F36

525

F40

438

F46

370

F54

310

F60

260

F70

218

F80

185

F90

154

F100

129

F120

109

F150

82

F180

69

F220

58
